WPX1 Products configuration


Simple configuration

WELCO peristaltic pumps use parts manufactured entirely using high-quality Japanese technology.
The pumps meet a wide range of needs to a maximum of 270mL per minute by using various combinations of parts.

WPX1(チューブポンプ)構造説明 書くパーツ説明





Various motors can be mounted according to needs

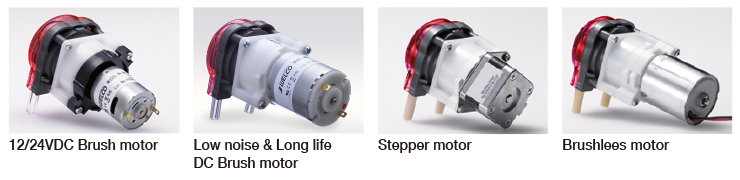

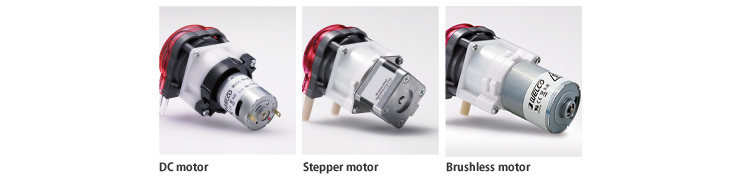

Motor variation
The lineup also includes various types of motor for mounting, such as 12 and 24VDC low-speed and high-speed motors, stepper motors, brushless motors, etc.
Various motors can be mounted according to needs





Pump tube type: Materials

A varlety of materials can be selected by fluid type.

Tube type

Tube type Regulately compliance/meets

S

TYGON 3355/3350

*High-performance and platinum-cured silicone tube
*Ultra-smooth inner bore reduces potential for particle entrapment
*Excellent fluid flow characteristics.

FDA 21 CFR Part 177.2600
USP Class Ⅳ
3-A (3350 only)

U

TYGON 2001

*Plasticizer-free chemical resistant tube.
*Great resistant to a wide range of fluids that typically destroy PVC products
*Applicable to soap and detergent dispensing, ink transfer, water purification lines, food, beverage and chemical transfer
FDA 21 CFR Part 177.2600

EL

TYGON E-LFL

*Non-DEGO tube for laboratory, Food & Beverage and Biopharmaceutical Applications
*Longest flex life in any clear Tygon tubes
*Extremely low particle spallation for sensitive fluid applications
FDA 21 CFR Part 177.2600
USP Class VI
NSF-51

P

PHARMED BPT

*Great resistant to general chemicals, acid, alkali and oxidizing agents
*Compatible with virtually all commercial cleaners and sanitizers
*Lasts up to 30 times longer than silicone tubes.
FDA 21 CFR Part 177.2600
USP Class VI

N

Norprene A-60-G

*Lasts and perform better than EPDM and other speciality rubber tubes
*Ozone and UV Light resistant
*Applicable to soap and disinfectant dispensing, printing ink transfer, and etc…
-

NF

Norprene A-60-F

*Food process tube for critical processing applications in the food, dairy and cosmetic industries.
*Compatible with virtually all commercial cleaners and sanitizers
*Great resistant to general chemicals, acid, alkali and oxidizing agents
FDA 21 CFR Part 177.2600
NSF 51
3-A

F

Fluran F-5500-A

*A proprietary fluorelastomer tube
*Exellent resistance to corrosive chemicals, oils, fuels and solvents
*Ozone and UV Light resistant
-

XL

TYGOPRENE XL-60

*Alternative to silicones and PVC when longer pump tube life is required
*Excellent resistance to a wide range of fluids, including acids and bases
*Greatly reduce the risk of fluid contamination
FDA 21 CFR Part 177.2600
NSF 51

W

W Tube

*Dual-wall tube which has excellent resistant to chemicals, acid, alkali.
*Inner layer: Polyolefin Outer layer: Thermoplastic Elastomers
-

Note:

TYGON, Pharmed, Norprene,  Fluran, and Tygoprene are manufactured by Saint-Gobain Group.

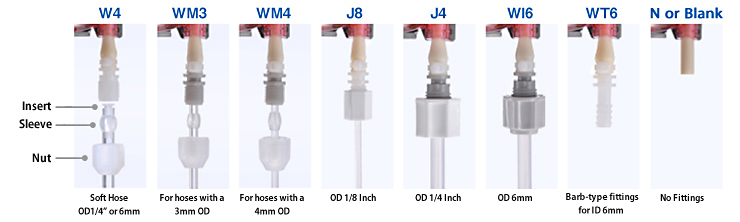

Types of tube fitting

A variety of fittings can be selected according to applications.

General specifications

Recommended installation height

2.0m max

Liquid temperature range 5 to 50°C (41°F to 122°F)
Specified environment temperature range 0 to 50°C (32°F to 122°F)
Specified ambient humidity range 20% to 80% (with no condensation)
Certifications & Approvals
